- making of the outer frame
According to the size of the lightbox, the aluminum profile of the corresponding size shall be cut by a 45-degree angle cutter, and the length and width shall be cut respectively, and placed in different positions. Splicing the length and width of aluminum profile, connecting with corner code, locking the outer frame of the lightbox
- cutting and installation of PP plate sheet
The PP plate sheet is cut and installed inside the box according to the size requirements of the lamp box and fixed

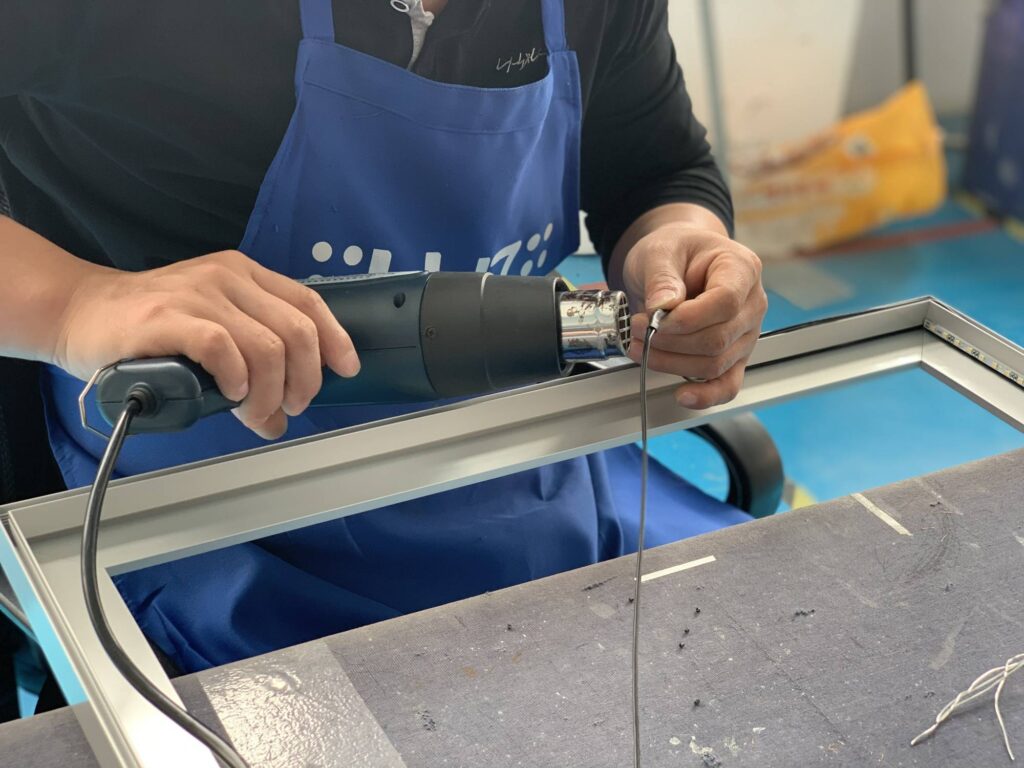

- lamp strip and wire arrangement
Connect the light strip according to the required length, weld it with solder welding, and arrange the position of the light strip and the position of the line
- install the light guide plate
Acrylic board is cut according to the size required, silkscreen or laser dot, and the light guide plate is punched. The light guide plate is locked in the box with screws, and the light shield bar is pasted
- packaging
Turn on the power supply, check the brightness of the lightbox, label it, then pack it into the carton
